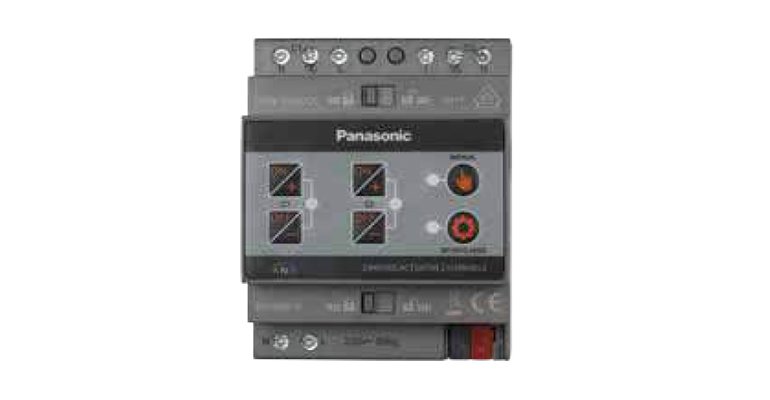

29 Mar KNX Dimming Actuator 2 CH 300W DM102
ACTUATOR Dimming Actuators
- 2 channel and 4 channel versions.
- Dimming range 0-100%.
- For dimming incandescent lamps, low voltage and high voltage
halogen lamps, Dimmable CFL and Dimmable LED Driver loads.
- Device and KNX bus module can be swapped independently of each other.
- Removable KNX bus module enables devices to be changed without reprogramming.
- LED channel status indicator for each channel.
- Manual operation on device (even without bus connection).
- Dimming output: 300W per channel for 2 channels version,
- 250W per channel for 4 channels version.
- Automatic load type detection (can be deactivated).
- For R, L and C load.
