One PA

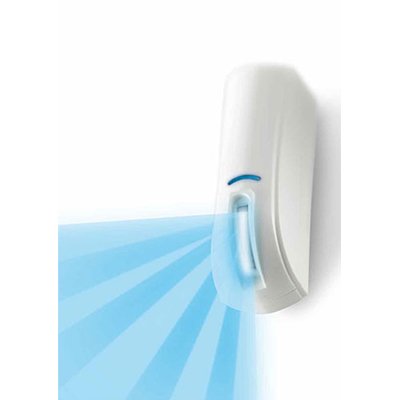

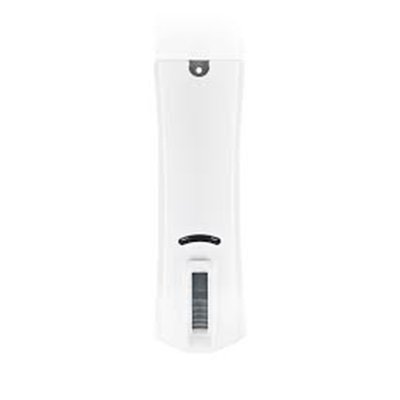

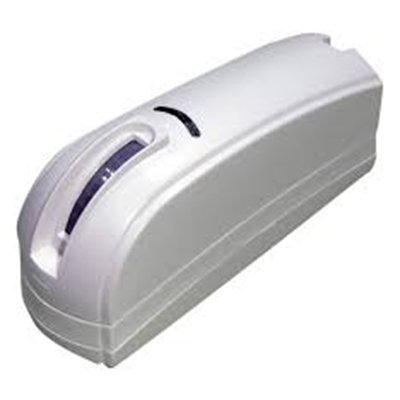

Passive IR Outdoor Curtain Detector

Features:

• Passive infrared curtain sensor with Fresnel lens
• Frequency: FM 868 MHz – single freq.
• max radio range 150 m – Coverage of 8 m max. with maximum opening of 1.8 m
• Height of installation between 1.9 m and 2.2 m
• ANTI MASKING function with ACTIVE IR
• Pet immunity for pets up to 40 cm high with optional lens filter
• Anti-opening tamper device
• ACCELEROMETER for anti-tear signalling function
• Power supply: 3.6 Vdc, 2.2 A lithium battery
• Life-span: about 2 years with energy saving function enabled
• IP degree of protection: 54
• Dimensions (WxLxH) 44 x 40 x 123 mm
• Compatibility: RAPTOR control panels, XSAT WS4
