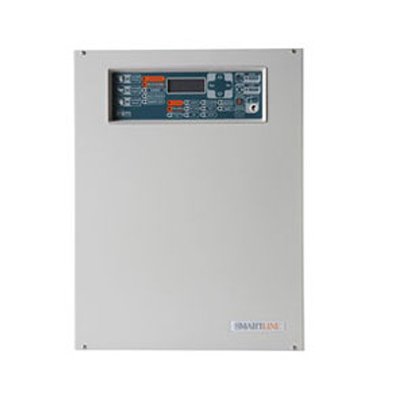

SmartLine036-4

Conventional Control Panel 4 Zone Expandable to 36 Zone

Features:

• Available with 2 zones, 4 zones expandable to 20, 4 zones
  expandable to 36
• Certified EN54-2, EN54-4 and EN54-21
• Certified EN12094-1 (Fire extinction)
• Supports up to 32 devices per zone
• Manages SmartLetLoose/One fire extinction board (function
  EN12094-1 approved)
• 1 supervised alarm output (NAC)
• 1 output for communication device activation (dialer)
• 1 dry-contact alarm output
• 1 dry-contact fault output
• 1 ancillary power supply output
• 1 interruptible power supply output
• 1 additional terminal for zones configurable as: open-collector
  output, supervised input, Gas detector input with 4-20mA interface
• Battery shutdown relay for deep discharge conditions
• Backlit graphic display
• Navigation keys for access to graphic display functions
• Fast keys (Silence, Reset, Evacuate, Investigate)

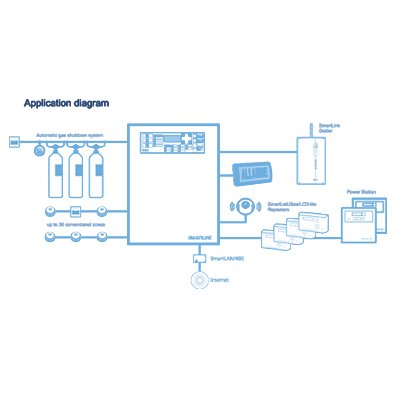

• RS485 BUS for repeater panel and power-supply station (SmartLevel) connections
• Signal buzzer
• 8 timers
• 8 logical equations
• Automatic balancing of individual detector lines
• RS232 connector for programming via PC
• Programming software
• System programming from the control panel
• Access key for level 2 functions (EN54 compliant)
• Battery charge optimization (via thermal probe)
• Battery efficiency test
• Extensive application of SMD reflux technology

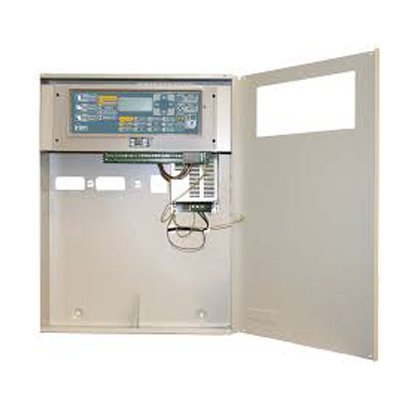

• Metal enclosure
