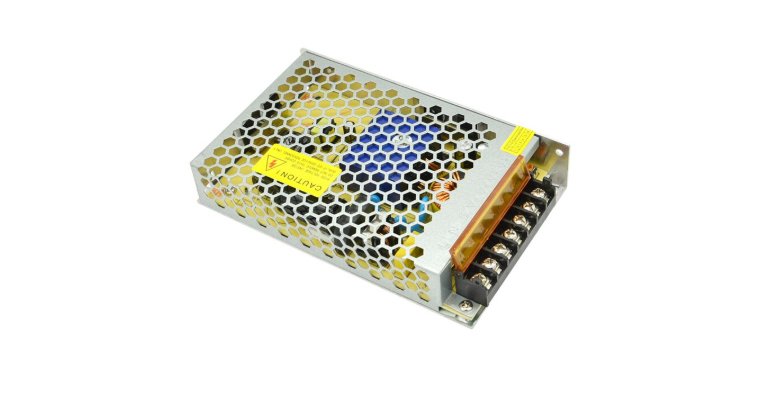

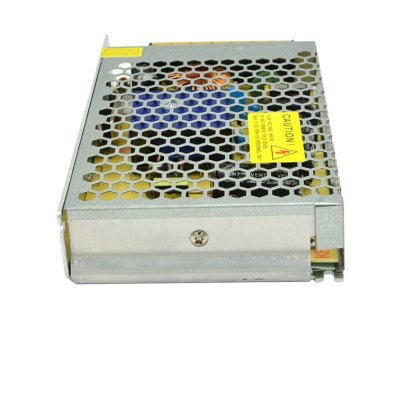

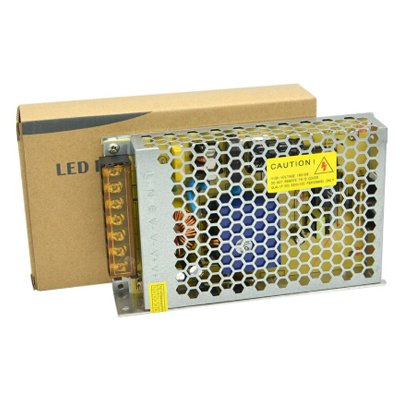

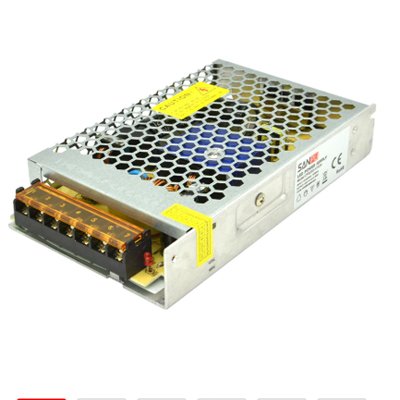

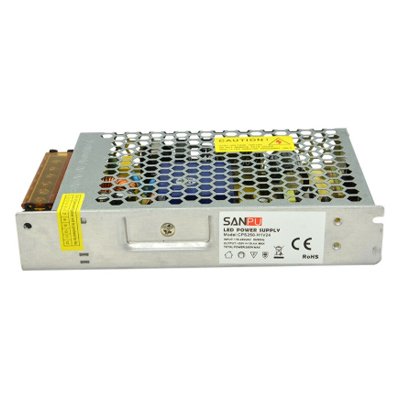

SZ-PSU2410A

SZ-PSU2410A

Power Supply 24VDC 10A





Features:

  • AC input voltage range: 85-132/ 170-264VAC Selected by Switch
  • Input frequency: 47-63Hz
  • Inrush current: cold start, 20A/115V, 40A/230V
  • Input leakage current: <0.7mA/230V
  • Line regulation (Full Load): <± 0.5%
  • Output voltage adj. range: ± 10%
  • Output overload protection: 110-130% Constant Current, Auto Recovery
  • Output over voltage protection: 115-150%
  • Withstand voltage: I/P-O/P: 3.0KVAC/1min; I/P-F/G: 1.5KVAC/1min; O/P-F/G: 0.5KVAC/1min
  • Rise time: 50ms@full load (typical)
  • Hold up time: 20ms@full load (typical)
  • Operating temp.& humidity: -10°C to 50°C (14°F – 122°F)
  • Storage temp.& humidity: -20°C to 85°C
